Sand? Garden waste? Bulk materials? – No problem! The Grünwelt GW-B750H mini dumper will make your life easier. The hydraulic lifting system makes work easier than ever before!

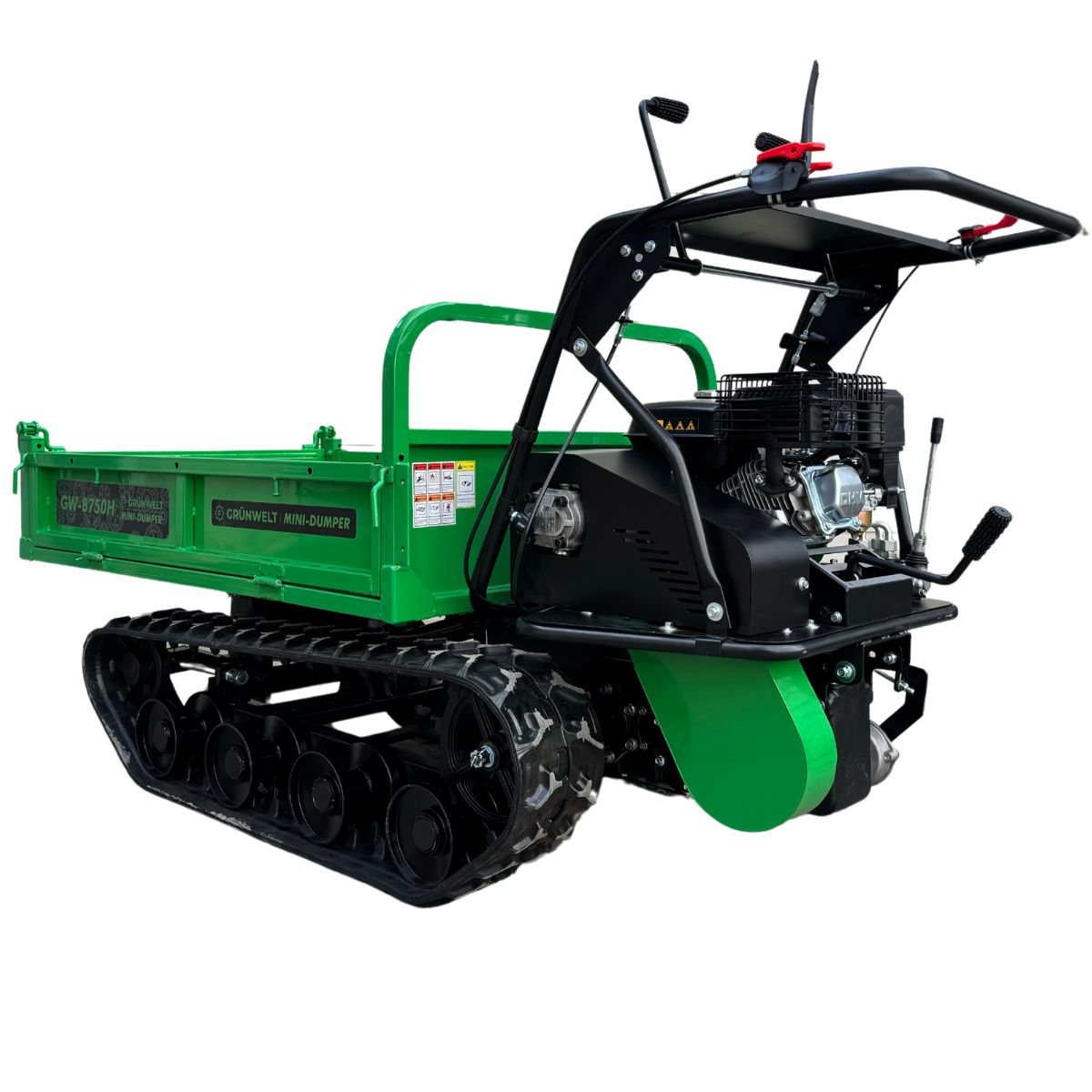

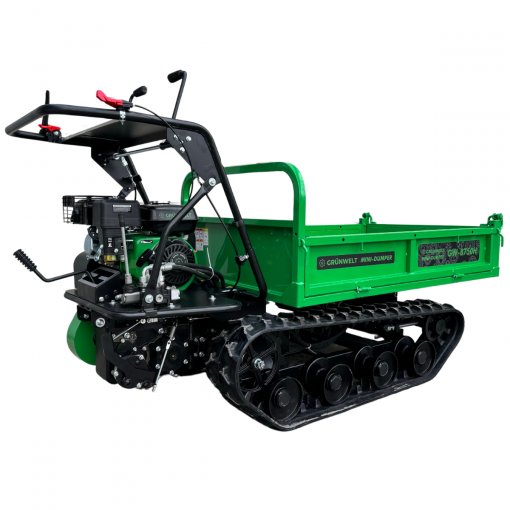

The automotive, tracked mini-dumper Grünwelt GW-B750H is a multipurpose device that is used for lading and transport big variety of goods of different shapes and sizes. Its maximal load weight – 750 kg.
- Flat surface: load capacity up to 750 kg.
- Slope of 17% or 10 degrees: load capacity up to 600 kg.
- Slope of 30% or 17 degrees: load capacity up to 375 kg.
This model is equipped with a petrol engine, which ensures secure and efficient operation. The belt coupling makes the structure easy to maintain. Four-speed transmission of this transporter allows operator to choose the optimal working speed. The loading area can be enlarged by opening the sides.
This model is characterized by its maneuverability and high performance. Its dumping body type simplifies the up and unloading process by opening, adding and fixing together additional sides or ramps. Grünwelt GW-B750H can be your great helper in garden, greenhouse, farms and construction yards.
- GTIN: 4260614712935
- Cargo dimension: 1190 x 760 x 200 mm
- Type dumping: hydraulic (till 50°)
- Rated loading capacity: 750 kg
- Climbing ability: 25° (without load)
- Driving model: Gear
- Gear shifting: 3-front, 1-rear
- Minimal turning radius: 2.5 m
- Transmission oil capacity: 3.5 L
- Net weight: 290 kg
- Dimentions: 2050 x 900 x 1200 mm
Engine
- Engine model: Loncin LC170F
- Engine type: EURO 5, 4 stroke, single cylinder, forced air cooling, OHV
- Displacement: 212 cm³
- Max. power: 4.9 kW / 7 HP
- Starting system: Recoil starter
- Fuel tank capacity: 3 L
- Engine oil capacity: 0.6 L
- Minimum fuel consumption: 395 g / kW∙h
- Mini dumper Grünwelt GW-B750H
- 1 × Set of keys
- 1 × Owner’s manual
