WMCGZ100-30E is pumping much faster than expected!

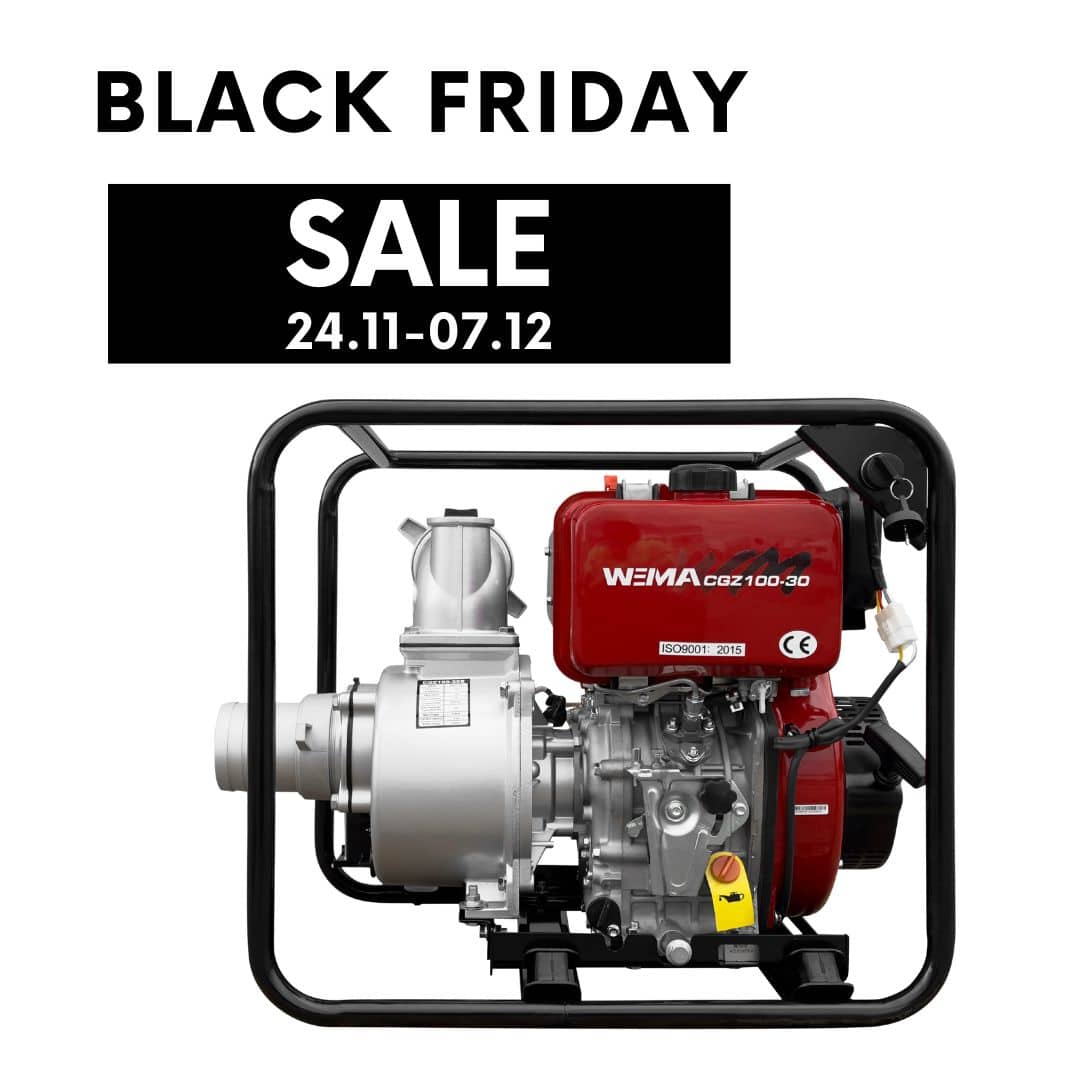

Weima WMCGZ100-30E is a high-quality diesel water pump that serves for pumping and dumping out large volumes of clean and slightly dirty water. This model serves perfectly for industrial or municipal usage, especially on the places without electricity; it can easily pump over 120 m³ of fluid in only 1 hour of operation.
Our water pump, which is equipped with a high-performance diesel engine Weima WM186FBЕ, is irreplaceable for pumping large quantities of water. It serves as an indispensable aid for firefighters and utility companies. This model can lift water up to 30 meters’ height and its suction depth is about 5 meters. The liquid can contain foreign bodies up to 8 mm in diameter.
Weima WMCGZ100-30E water pump has a fuel tank with a volume of 5.5 liters and consumes fuel very efficiently. WMCGZ100-30E water pump has external diameter of 100 mm (4”). There are two conical nozzles in the water pump set, which simplify every 4″ hoses and pipes connections. In addition, you will find a special filter element that does not transmit various big particles up to 8 mm in diameter in order to protect the metal case of the water pump.
9.5 HP engine of is not only reliable, but also environmentally friendly! It meets all the requirements of the exhaust gas standards in accordance with Euro 5.
- Reliable and environmentally friendly diesel engine Weima WM186FBЕ (9.5 HP, E-Starter)
- Discharge capacity up to 120 m³/h
- Suction height up to 5 m
- Lift up to 30 m
- Suitable for water with foreign bodies up to 8 mm
- Includes a special filter element
- Stable construction made of high-quality materials
- Minimal noise and vibration
- Easy to use and transport
- GTIN: 4260614712751
- Max. lift: 30 m
- Max. discharge capacity: 120 m³/h
- Suction: 5 m
- Inlet / outlet size: 100 mm
- Dimensions: 680 × 520 × 660 mm
- Net weight: 67 kg
Engine
- Engine: Weima WM186FBE (4 stroke, single cylinder, forced air cooling)
- Displacement: 418 cm³
- Bore × Stroke: 86 × 72 mm
- Max. power: 7 kW / 9.5 HP / 3600 rpm
- Rated power: 6.3 kW / 3600 rpm
- Shaft diameter: 25 mm (sunk key)
- Direction of Revolution: Left (from PTO side)
- Fuel tank /engine oil capacity: 5.5 / 1.65 L
- Starting system: Recoil starter + E-Starter
- Diesel water pump Weima WMCGZ100-30E
- Nozzles and special filter element
- Board tool for operation and maintenance
- Operation manual
- 2 year guarantee
Manufacturer/EU Responsible Person
EU Responsible Person
Company name:
Grünwelt Maschinen GmbH
Address:
Halberstädterstr. 115
39112, Magdeburg
Sachen-Anhalt
Deutschland
E-Mail: office.gruenwelt@gmail.com
Phone: +49 15731450718
- Not suitable for children under 3 years.
- Warning: Please keep out of reach of children.
- Warning: Only use with device guard. Do not use on public roads.
